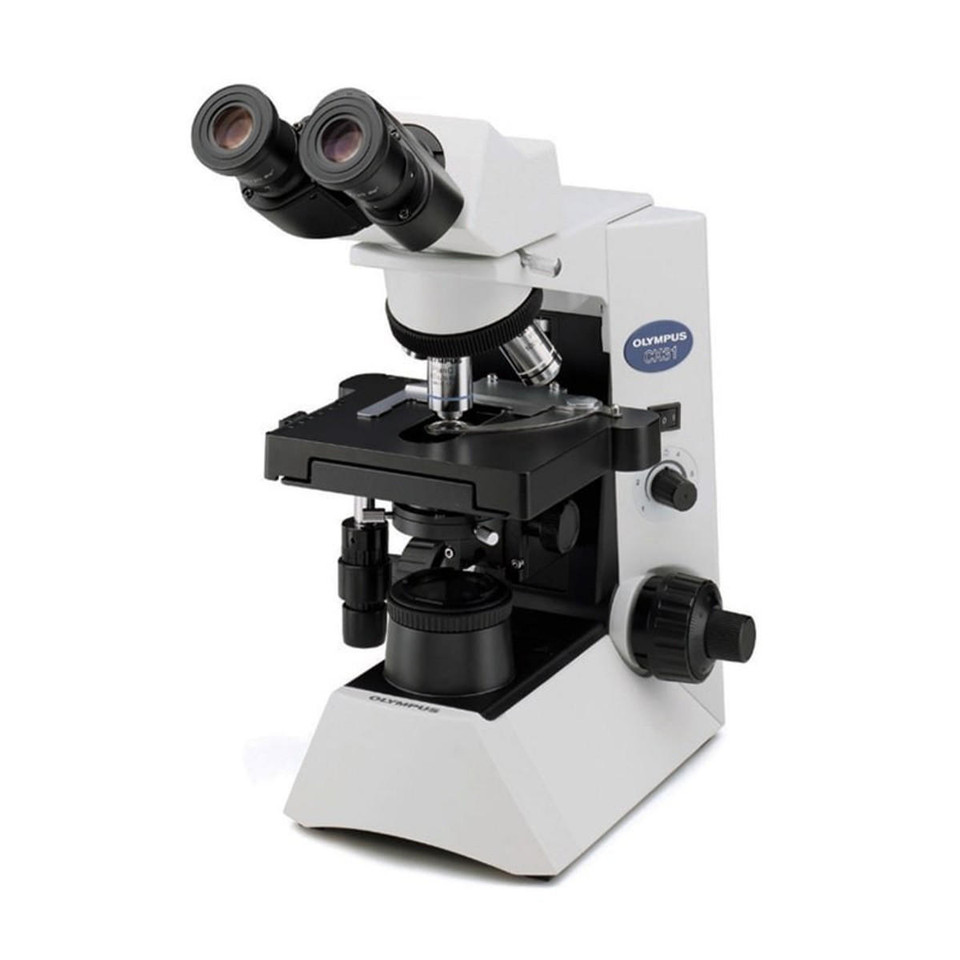

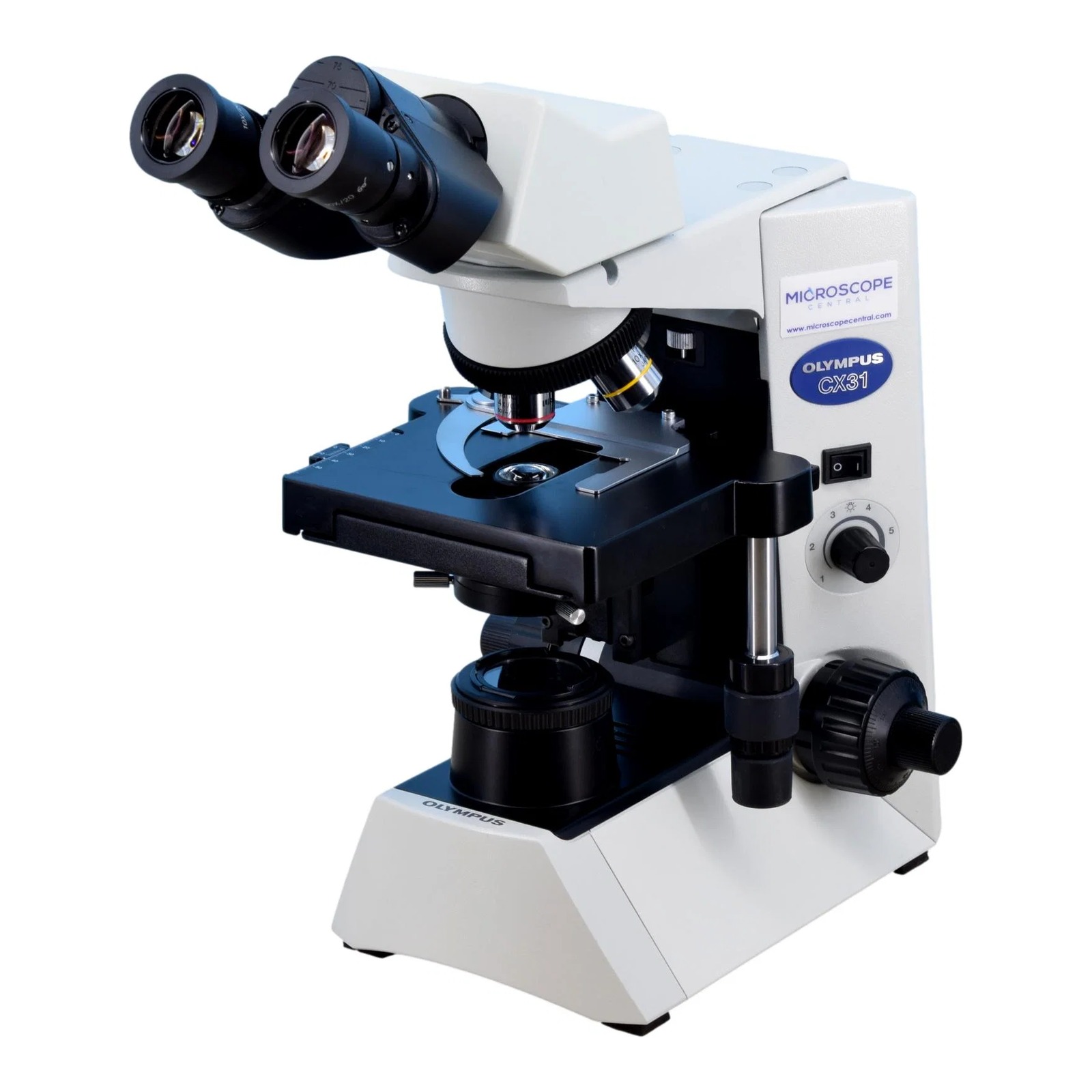

Olympus CX 31 Microscope

Description

The Olympus CX31 Clinical Microscope is a versatile and affordable solution designed for both clinical and educational applications. With its ergonomic design and advanced optical features, the CX31 ensures clear, brightfield imaging with excellent flatness, making it ideal for extended use in testing and examination.

Outstanding Flat Images with PLCN Objectives

The CX31 microscope features Olympus’ renowned UIS2 optics infinity system combined with PLCN series Plan Achromat objectives. These objectives provide outstanding flatness, delivering sharp and clear images right up to the edge of the field of view. The 10x and 40x objectives are particularly suited for frequent use in testing and examination work.

Bright and Even Illumination

Equipped with a 6v 30w halogen lamp, the CX31 ensures bright and even illumination at all magnification levels. The optimized aperture iris diaphragm, built-in condenser, and standard field stop work together to provide consistent lighting, enhancing the clarity of your observations.

Excellent UIS2 Optics

The UIS2 eyepiece offers a wide field of view (FN 20) and is designed for comfortable use, even with eyeglasses. The PLCN series Plan Achromat objectives guarantee bright, clear images with exceptional flatness, making the CX31 a reliable tool for precise observations.

Versatile Observation Tubes

The CX31 offers a choice of three observation tubes—binocular, trinocular, and tilting binocular—allowing users to select the configuration that best suits their needs and applications.

Integrated Abbe Condenser

The built-in Abbe condenser with NA 1.25 and optimized aperture diaphragm settings ensures appropriate diaphragm settings for various specimens and magnifications, enhancing the quality of your observations.

Protected by Anti-Fungal Treatment

The CX31 microscope features an anti-fungal treatment applied to the observation tubes, eyepieces, and objectives, protecting the quality of the optical parts even in high humidity environments.

Ergonomic and Durable Design

The CX31’s rackless stage has no side protrusions, and its low-positioned control knob allows for smooth and comfortable specimen movement. The stage handle with tactile grips provides a light touch for stage movement, while the coaxial coarse/fine focusing knob offers adjustable torque for smooth focusing operations. The highly rigid frame is designed to withstand frequent use and repositioning, and convenient hand grips make the microscope easy to carry.

Specifications

• Observation Method: Brightfield, Darkfield
• Focus Mechanism: Stage Focus with Coarse Handle Stroke (25 mm), Coarse Handle Stroke per Rotation (36.8 mm)
• Stage: Manual with right-hand control, X: 76 mm, Y: 50 mm
• Condenser: Manual Abbe Condenser, NA 1.25
• Observation Tubes: Binocular, Tilting Binocular (30° inclination angle)
• Interpupillary Distance Adjustment: 48–75 mm
• Dimensions: 233 (W) x 367.5 (D) x 411 (H) mm
• Weight: 8 kg (standard configuration)

Warranty and Service

This used microscope comes fully serviced with a warranty, ensuring reliable performance for years to come.
