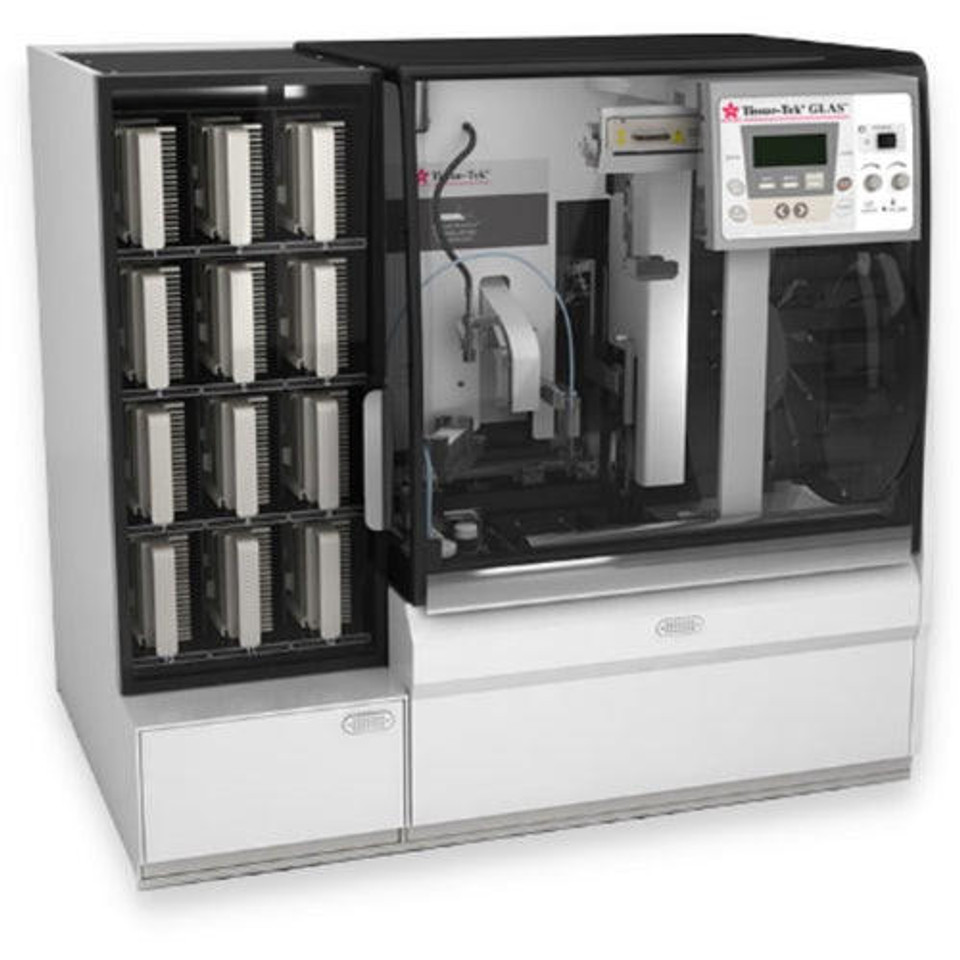

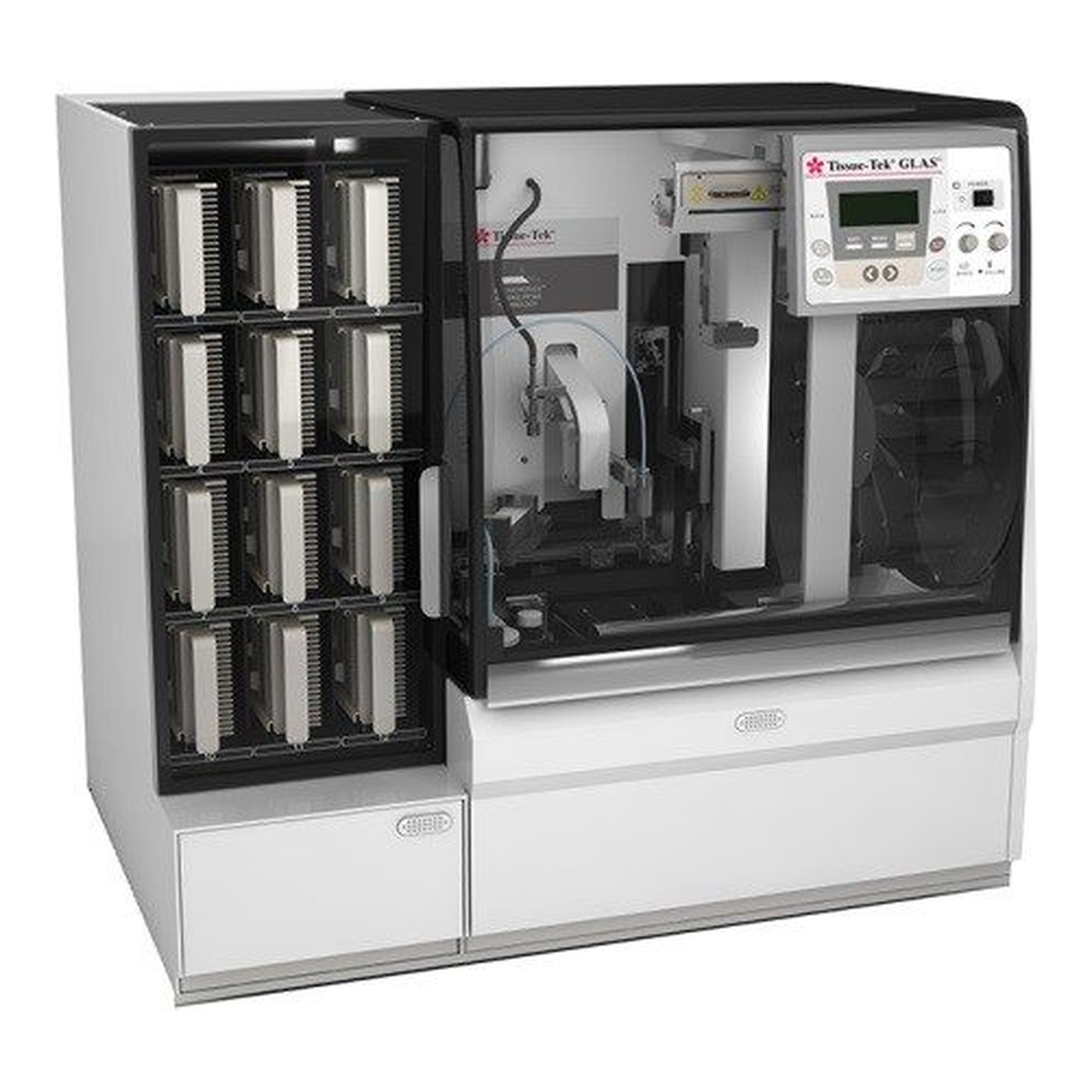

Sakura G2 Glass Coverslipper – Tissue-Tek® Glas™ g2

Description

The Sakura G2 Glass Coverslipper (Tissue-Tek® Glas™ g2) is a fully automated, high-throughput glass coverslipping system designed to meet the demands of modern histology and cytology laboratories. This advanced system replicates the precision of manual coverslipping while delivering the consistency, speed, and safety of automation.

Engineered to streamline workflows, the Glas™ g2 can process up to 400 slides per hour and supports continuous loading for enhanced efficiency. The unit offers up to nine customizable programs that let labs fine-tune parameters like speed, mounting media volume, and coverslip size. Compatible with 40, 50, 55, and 60 mm coverslips preloaded in disposable holders, the system ensures quick changeovers and minimal downtime.

Designed to integrate with the Tissue-Tek Prisma® and Prisma® Plus stainers, the G2 forms a seamless walkaway staining and coverslipping solution. Its advanced filtration system and optional barcode scanner meet safety and compliance requirements.

Key Features:

• Processes up to 400 slides/hour

• Compatible with Tissue-Tek Prisma® and Prisma® Plus

• Supports 40–60 mm coverslips in disposable holders

• Mechatronic™ slide technology for bubble-free results

• Large 240-slide unload capacity

• Audible alarm and barcode tracking

• Advanced onboard fume filtration system

• LCD user interface with LIS connectivity option

Specifications:

• Product Name: Tissue-Tek® Glas™ g2 Glass Coverslipper
• Product Code: 6500
• Application: Histology, Cytology, Special Staining, Advanced Staining
• Dimensions: 29.5 (W) x 24.4 (D) x 29.5 (H) inches / 75 (W) x 62 (D) x 75(H) cm
• Weight: 242 lbs (110 kg), without reagents
• Throughput: Up to 400 slides/hour
• Configuration: Benchtop
• Integrated Staining via Link: Tissue-Tek Prisma® or Tissue-Tek Prisma® Plus, using the Link Between Tissue-Tek Prisma® and Tissue-Tek® Glas™ g2 (6168)
• Load Capacity: 3 baskets into the load station
• Unload Capacity: 12 baskets (240 slides in the unload station)
• Mounting Medium: 16 oz. xylene-based
• Fume Filtration: Activated Carbon Filters on-board, optional external vent connection
• Slide Size: 1 x 3 inches (25 x 75 mm)
• Coverslip Reusable Holders: 40, 50, 55, or 60 mm
• User Interface Display: LCD, 4 lines (20 characters each), 2 LED’s
• LIS Connectivity: Optional barcode reader (6508)
• Operating Temperature: 10 to 40°C (50 to 104°F)
• Rated Voltage and Current: Single phase, 115VAC ± 10%, 50/60 Hz, 2.2A
• Certifications: IEC 61010-1 2nd ed., CAN/CSA C22.2 No. 61010-1, UL 61010-1
• Regulatory Status: IVD, FDA Class I
