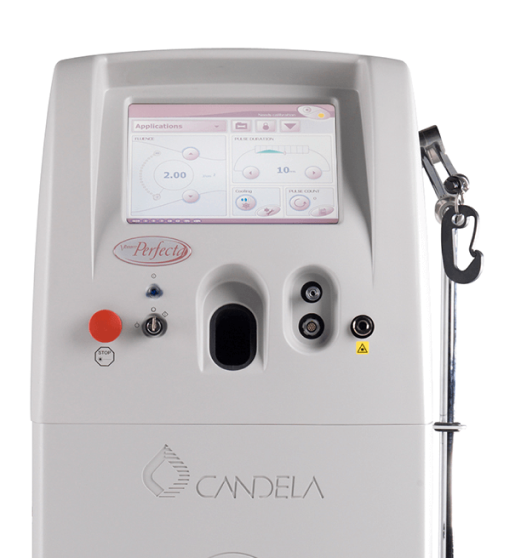

The Candela Vbeam Perfecta is one of the most trusted pulsed dye lasers in dermatology. Designed primarily for vascular treatments such as veins, rosacea, and scars, it also has off-label uses for warts and other skin conditions.
What makes the Vbeam unique is its 595 nm wavelength. Sitting in the yellow-orange range of visible light, this wavelength is absorbed especially well by blue vessels, making it highly effective for vascular work. Unlike solid-state lasers, the Vbeam is a dye-based laser — and that brings its own quirks, especially around routine maintenance and long-term reliability.
Here are the most common problems (and error codes) we see with the Vbeam Perfecta, what they mean in real-world use, and how to address them.
1. Fault 15 – Transmission Error
If you’ve ever seen your Vbeam throw a “Fault 15” message mid-calibration, you know how frustrating it is. Treatments grind to a halt, staff get flustered, and patients are left waiting.
What’s happening here is a loss of transmission between the laser head and the fiber. In plain terms, the light leaving the machine isn’t matching what’s reaching the handpiece. Once the system detects more than ~25–30% loss, it throws the error and shuts things down.
What it looks like in practice:
- The unit won’t complete calibration.
- Output feels weak or inconsistent.
- Staff notice “dead spots” when firing at the skin.
Why it happens:
There are three main culprits:
- A damaged fiber line.
- Lenses in the handpiece slider that have worn down or gotten dirty.
- A debris shield that’s overdue for cleaning or replacement.
Fix and best practices:
Daily cleaning of the debris shield with alcohol is the easiest way to prevent this fault. If the error persists, try swapping sliders. For example, if you were using the 7 mm slider and Fault 15 appears, switch to the 5 mm or 10 mm slider. If the error clears, the issue is with the slider lens, which can be repaired or replaced. If it persists across sliders, the fiber itself may be compromised — that’s when you’ll need a technician.
2. Fault 6 – Calibration Fault
Calibration is one of the built-in safety nets of the Vbeam, and it’s where many problems get caught. Every time you adjust the energy, the unit runs a self-check to make sure it can deliver what you’re asking for. But if the system can’t hit those numbers, it throws a Fault 6 calibration error.
What users notice:
- The error usually appears during calibration rather than mid-treatment.
- The system fails to meet the requested output energy.
- No amount of slider swapping or debris shield cleaning fixes it.
What’s going on inside:
Unlike Fault 15, which is usually a transmission issue, Fault 6 points to an internal generation problem. That means the laser head itself isn’t producing enough energy. It could be a dye cartridge nearing end-of-life, worn mirrors, or inefficiencies inside the optics and reflectors.
Solution:
This is not a user-fixable issue. If Fault 6 appears repeatedly, it’s time to call for service. A technician will need to evaluate whether it’s the dye, optics, or another component inside the head.
3. Fault 12 – Energy Out of Range / Energy Imbalance
If you’ve ever had the machine throw an “Energy Out of Range” or imbalance error, you were probably dealing with the early signs of dye depletion.
How it shows up in the clinic:
- Energy output starts to feel inconsistent, even when settings haven’t changed.
- Treatments may seem weaker than normal.
- The machine eventually displays Fault 12 or a related imbalance warning.
Why it happens:
The Vbeam generates a series of sub-pulses that need to fire in sequence at balanced energy levels. If the dye is breaking down, those pulses lose their balance. The system recognizes this and flags the error before performance degrades further.
Fix:
This one almost always means it’s time for a dye kit replacement. It’s not something a user can handle on their own, but once the kit is replaced and the system recalibrated, output consistency returns.
The Bigger Picture
The Vbeam Perfecta is one of the most reliable and widely used dermatology lasers in the world, but it comes with one unavoidable fact: the dye has a limited lifespan.
On average, dye kits last around 40,000–50,000 pulses, with a guarantee of ~20,000 shots or one year (whichever comes first). A busy clinic can burn through a kit in months, while a slower-paced practice may find their kit expiring on the calendar rather than the shot count. Either way, replacement is a built-in cost of ownership.
Preventive Tips for Vbeam Users
- Clean the debris shield daily to reduce the chance of transmission errors.
- Replace debris shields proactively before they cause interruptions.
- Rotate handpiece sliders if you suspect one lens is failing.
- Track shot counts to anticipate dye replacement before performance drops.
- Schedule annual preventive maintenance for calibration, optics, and dye checks.
Final Thoughts
The Candela Vbeam Perfecta has earned its place as one of the most versatile lasers in dermatology. Its unique 595 nm wavelength makes it unmatched for vascular treatments, and its proven results have kept it in high demand across the country.
Still, it’s important to recognize that this is a dye laser, and dye replacement is part of the ownership equation. Add in common error codes like Fault 6, 12, and 15, and you see why preventive care matters so much.
The takeaway: treat your Vbeam well, stay ahead of routine maintenance, and you’ll enjoy years of reliable performance. And when a problem goes beyond cleaning a shield or swapping a slider, that’s when Amtech Medical’s technicians step in to keep your laser running at its best.
