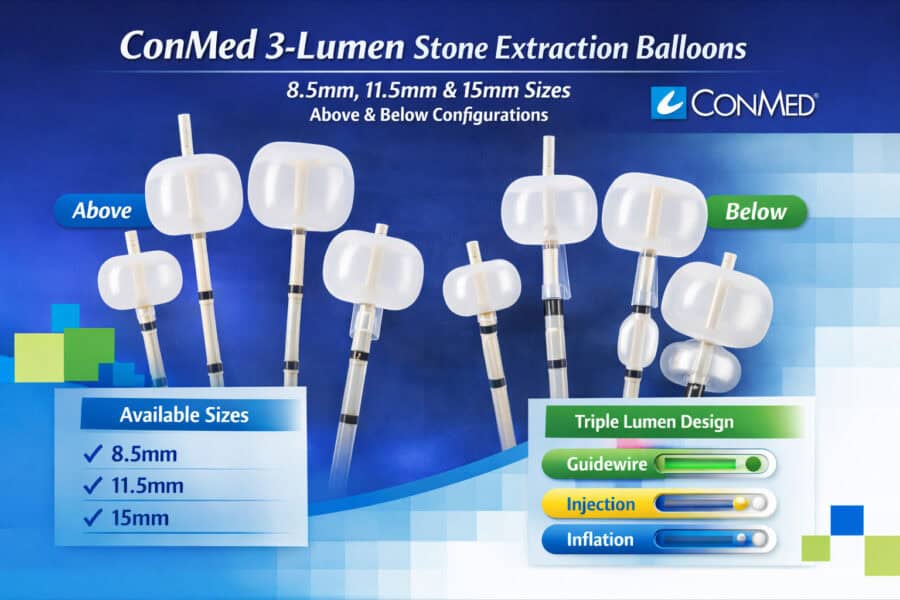

ConMed 3-Lumen Stone Extraction Balloons — Above & Below Configurations (8.5mm, 11.5mm, 15mm)

Description

ConMed 3-Lumen Stone Extraction Balloons are designed for the retrieval of biliary stones and debris during ERCP and other interventional endoscopic procedures. The three-lumen design allows for simultaneous guidewire access, contrast injection, and balloon inflation, helping streamline stone extraction workflows and reduce the need for repeated device exchanges.

These balloons are available in multiple diameters to accommodate varying duct sizes and stone burdens, and in both Above and Below configurations to support different procedural techniques and physician preferences. The balloon material and inflation profile are engineered to provide controlled expansion and consistent stone engagement while minimizing trauma to the bile duct.

This listing consolidates all ConMed 3-lumen stone extraction balloon SKUs into a single reference page with diameter and position variants for simplified selection and inventory management.

Key Features

• Three-lumen design for guidewire, injection, and balloon inflation
• Designed for biliary stone extraction during ERCP
• Available in multiple balloon diameters
• Above and Below balloon positioning options
• OEM ConMed devices for consistent clinical performance

Available Components & SKUs

ConMed 3-Lumen Stone Extraction Balloons

Above Configuration

• 007123 — 8.5mm balloon, Above
• 007124 — 11.5mm balloon, Above
• 007125 — 15mm balloon, Above

Below Configuration

• 007143 — 8.5mm balloon, Below
• 007144 — 11.5mm balloon, Below
• 007145 — 15mm balloon, Below

How to Choose the Correct Stone Extraction Balloon

• Select balloon diameter based on duct size and stone burden
• Choose 8.5mm for smaller ducts and minor stone burden
• Choose 11.5mm for moderate duct dilation and standard stones
• Choose 15mm for larger ducts and heavier stone burden
• Choose Above or Below configuration based on physician technique and preferred stone engagement method
• Confirm guidewire and scope compatibility prior to use

Applications

• ERCP procedures
• Biliary stone extraction
• Duct clearance following sphincterotomy
• Cholangiography and stone management
• Interventional gastroenterology

Included in the Package

• One ConMed stone extraction balloon selected by diameter and configuration

Frequently Asked Questions (FAQ)

1. What does “3-lumen” mean in a stone extraction balloon?
   Three lumens allow the device to support guidewire passage, contrast injection, and balloon inflation simultaneously without removing the balloon or guidewire.
2. What is the difference between Above and Below configurations?
   The terms refer to the relative positioning of the balloon in relation to the catheter tip and guidewire exit. Physicians select Above or Below based on preferred technique for engaging and sweeping stones from the duct.
3. How do I choose the correct balloon diameter?
   Balloon diameter should match the bile duct size and stone burden. Oversizing can increase the risk of trauma, while undersizing may reduce stone capture efficiency.
4. Are these balloons single-use?
   Yes. These devices are typically supplied as single-use and should be disposed of after each procedure per facility protocol.
5. Can these balloons be used for pancreatic duct stones?
   These balloons are primarily intended for biliary applications. Use in pancreatic procedures should be based on physician judgment and device compatibility.
