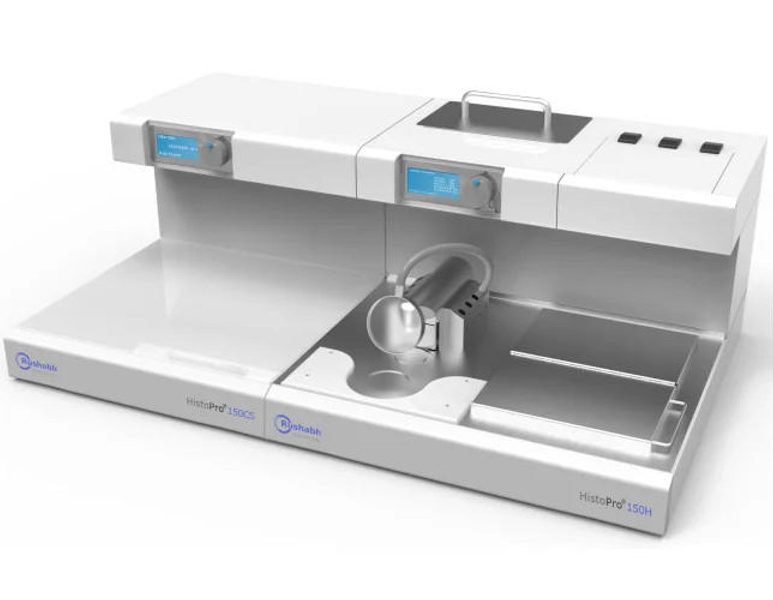

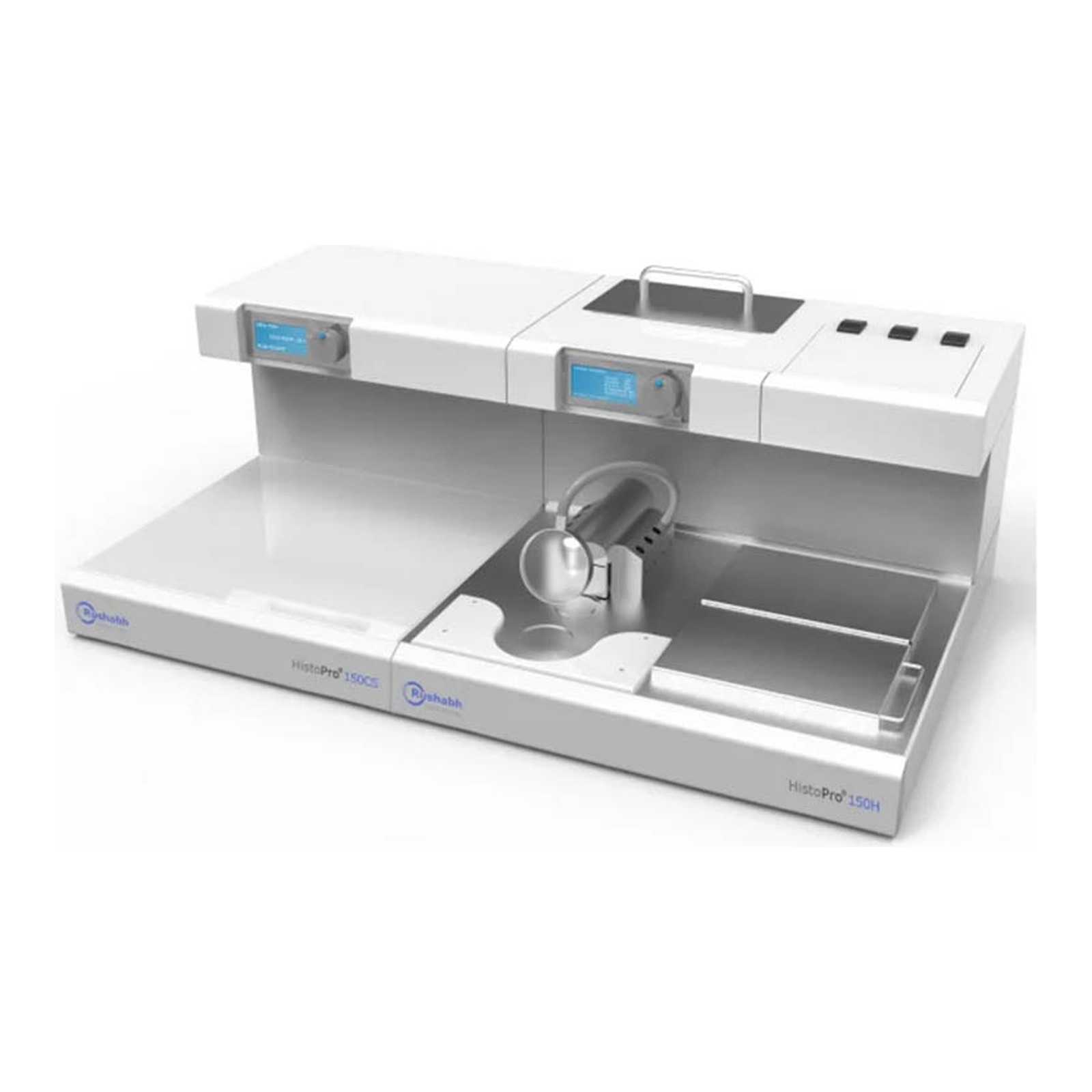

Histo-Pro 150 Embedding Center

Description

The Histo-Pro 150 Embedding Center redefines tissue embedding by combining advanced performance with ergonomic convenience in a modular two-part design. Developed for efficiency, durability, and precision, this embedding system is ideal for modern histopathology laboratories focused on streamlining workflows and improving specimen quality.

Its robust stainless steel surfaces, customizable controls, and user-friendly interface deliver consistent and reliable embedding, even during high-throughput lab operations.

Key Features:

• Two-Module System: Separate hot and cold modules for optimal workflow control
• Stainless Steel Surfaces: Durable and easy to clean for long-term use
• PAT Interface: Intuitive user interface for efficient operation
• Large Cold Plate & Cassette Bath: Accommodates high sample volumes
• Fully Programmable: Set custom time and temperature for precision
• Adjustable Paraffin Flow: Fine-tune flow rate to match embedding needs
• Self-Draining Forceps Holder: Reduces mess and simplifies cleanup
• Auto-Defrosting Cold Plate: Maintains consistent cooling with no manual intervention
• 4-Liter Paraffin Tank: Supports extended embedding sessions
• Automatic Turn-On: Pre-program start times to match lab schedules

Technical Specifications:
Hot Module (150H):

• Paraffin Tank: 4 liters
• Mold Oven: 7″ x 7″ x 2.25″
• Cassette Bath: 8″ x 11″ x 2.1″
• Temp Range: 40–70°C
• Size: 20″ W x 22.5″ D x 12.5″ H
• Weight: 35 lbs (16 kg)
• Power: 800W Max | 115V or 230V AC

Cold Module (150CS):

• Cold Plate: 15.8″ x 14″
• Temp Range: -10°C to +10°C
• Size: 16″ W x 22.5″ D x 12.5″ H
• Weight: 35 lbs (16 kg)
• Power: 200W Max | 115V or 230V AC
