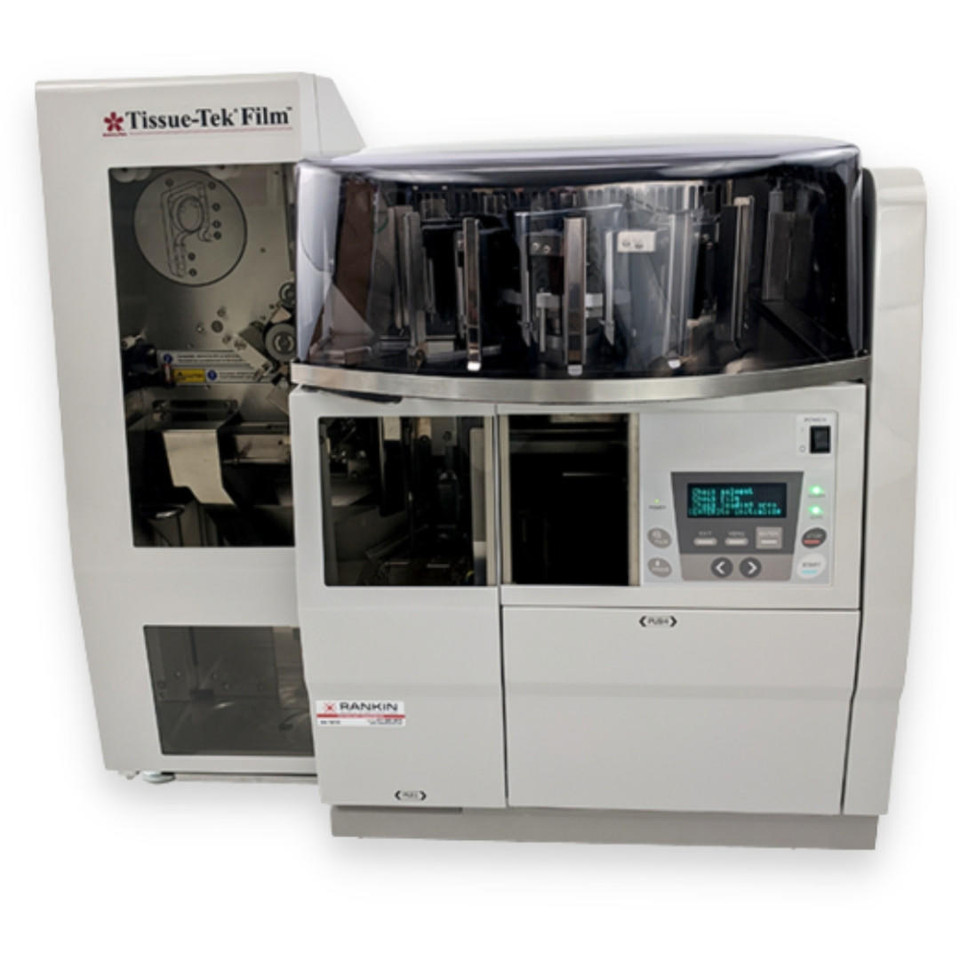

Sakura 4740 Tissue-Tek Film® Coverslipper

Description

The Sakura 4740 Tissue-Tek Film® Coverslipper sets a new benchmark in histology laboratory automation, offering unmatched throughput, reliability, and ease of use. Designed to meet the needs of high-volume laboratories, this advanced film coverslipper processes up to 1,080 slides per hour, making it the fastest coverslipping system in the world.

• With its advanced automation, the 4740 delivers consistently bubble-free coverslipping, customizable with four different coverslip lengths. The integrated barcode scanner and LIS connectivity ensure traceable and compliant slide handling, aligning with CAP requirements and enhancing patient safety.

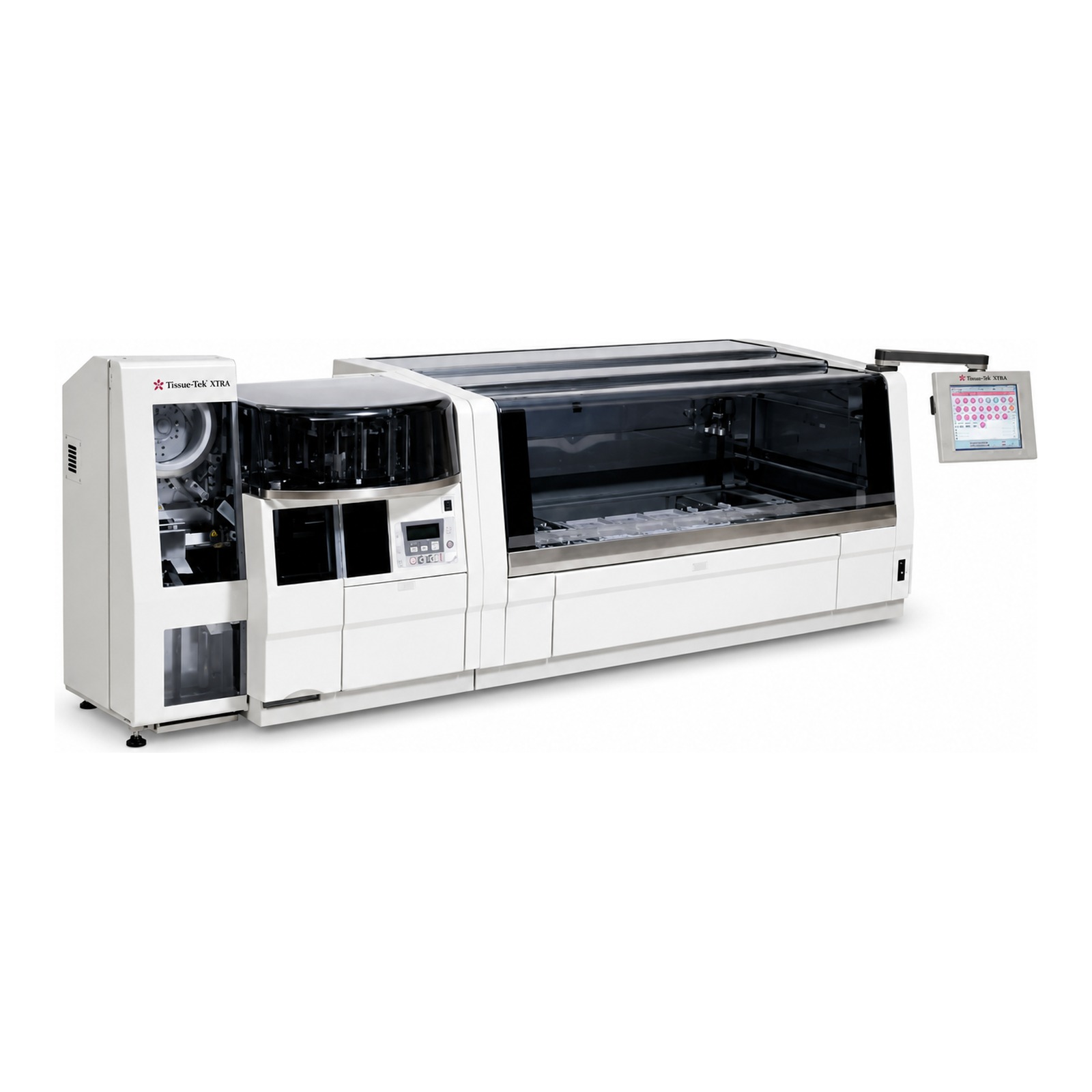

• Engineered to reduce downtime, this system boasts an industry-leading mean time between repairs of over 52 weeks. The unit integrates seamlessly with the Tissue-Tek Prisma® stainer, creating a walkaway, fully automated staining and coverslipping workflow.
• Onboard fume filtration and an optional external venting system promote a safer lab environment, while intuitive alerts for low solvent or film levels help minimize workflow interruptions.

Key Features and Benefits:

• Unmatched throughput: coverslips up to 1,080 slides/hour
• Seamless integration with Tissue-Tek Prisma® for full automation
• Tissue-Tek® Coverslipping Film and Easy Holders improve efficiency
• Consistent, bubble-free coverslipping with advanced automation
• Barcode scanner and LIS connectivity for compliant slide tracking
• Adjustable coverslip lengths (45–60 mm) for application flexibility
• Integrated onboard fume filtration for safety
• Exceptionally low maintenance with minimal downtime

Specifications:

• Product Name: Tissue-Tek Film® Coverslipper
• Product Code: 4740
• Rated Voltage and Current: Single phase, 115VAC ± 10%, 50/60 Hz, 1.3A
• Dimensions: 28.3 (W) x 23.2 (D) x 27.1 (H) inches / 72 (W) x 59 (D) x 69 (H) cm
• Weight: 165 lbs (75 kg), without reagents
• Throughput: 1,080 slides/hr
• Configuration: Benchtop
• Load Capacity: 3 baskets into load stations
• Unload Capacity: 12 baskets, 240 slides
• Xylene Capacity: 500 mL bottle
• Slide Size: 1 x 3 inches (25 x 75 mm)
• Coverslipping Lengths: 45, 50, 55, or 60 mm
• Operating Temperature: 10 to 40°C (50 to 104°F)
• Fume Filtration: Activated Carbon Filters on-board, optional external vent connection
• LIS Connectivity: Optional barcode reader
• Certifications: IEC 61010-1 2nd ed., CAN/CSA C22.2 No. 61010-1, UL 61010-1
• Regulatory Status: IVD, FDA Class I
